How to Connect GODIAG Gearbox ISM Cable 5-in-1 with CGDI MB?

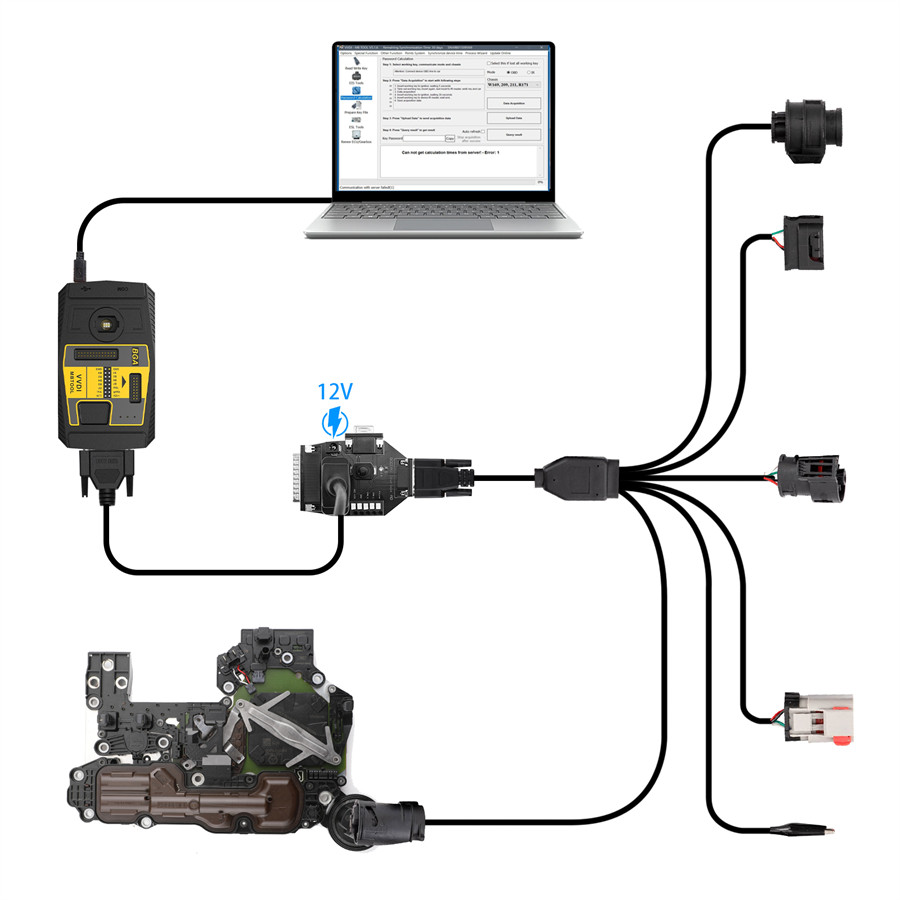

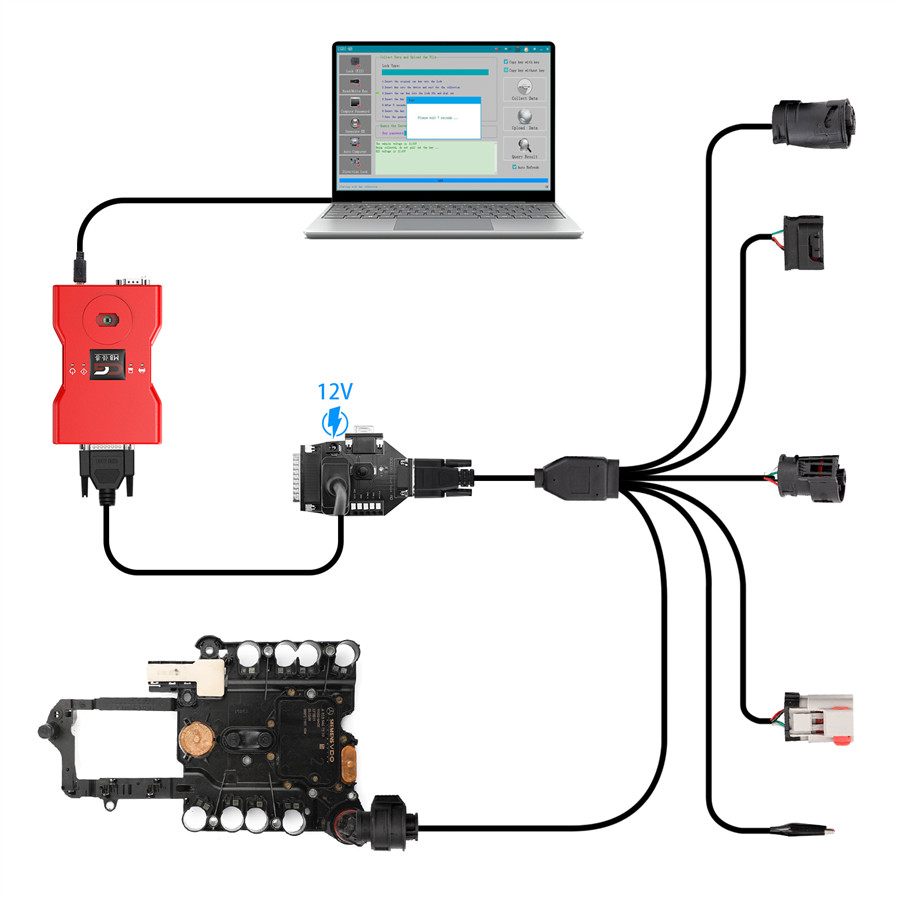

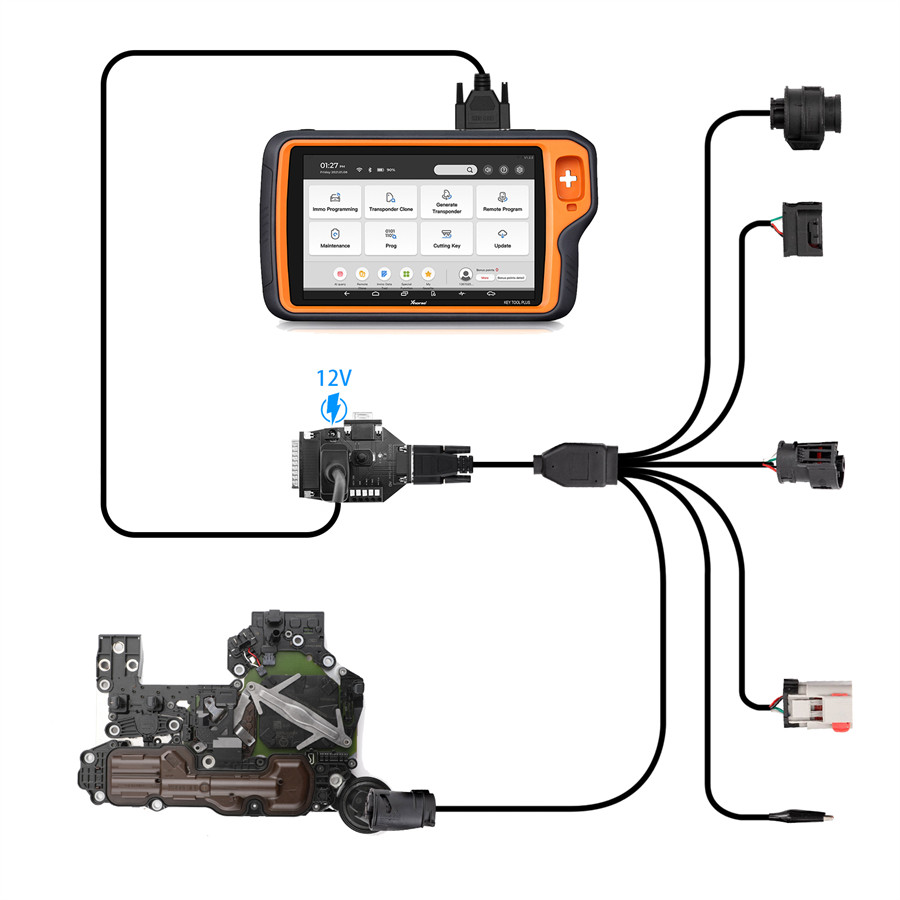

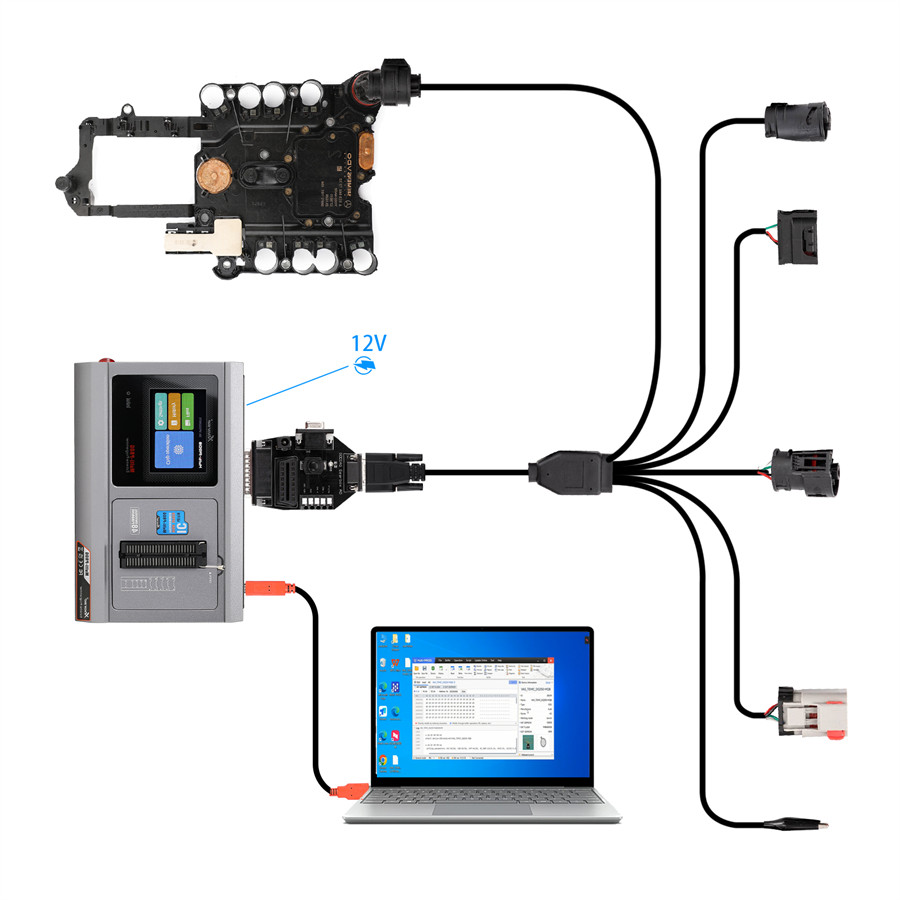

GODIAG Gearbox ISM Cable 5-in-1 Set is compatible with multiple devices. Here will show how the detailed connection diagrams.

What is GODIAG Gearbox ISM Cable 5-in-1?

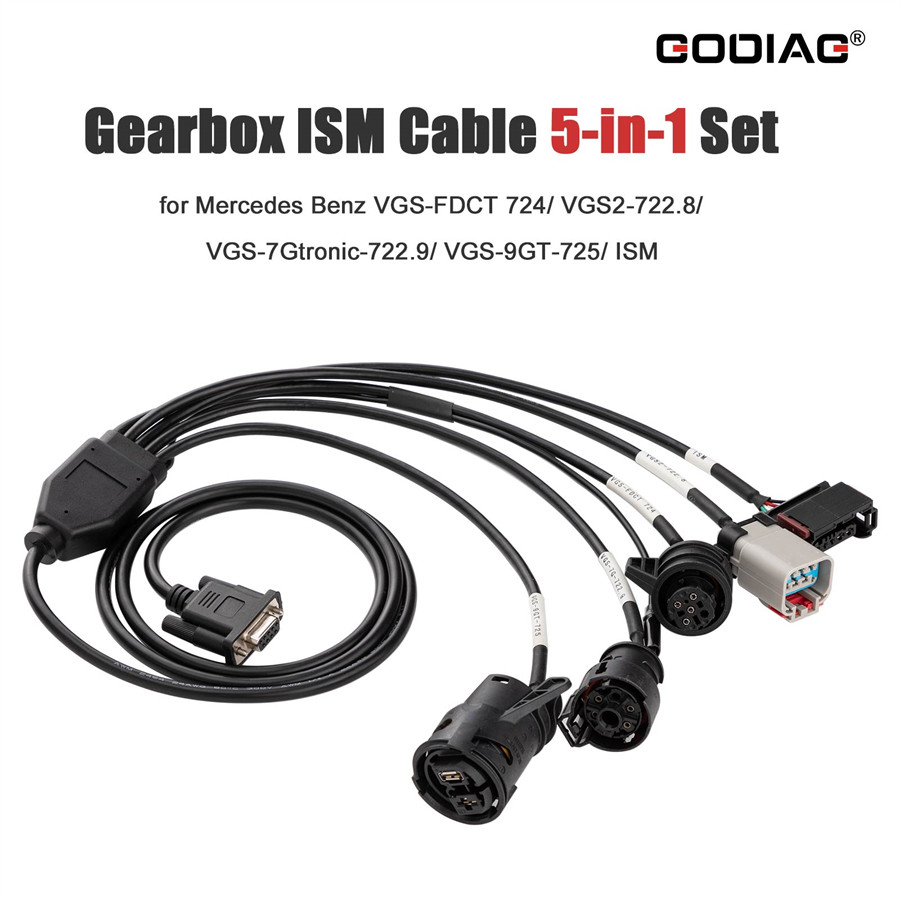

GODIAG Gearbox ISM Cable 5-in-1 Set is a specialized cable kit for connecting diagnostic tools to Mercedes-Benz transmission control modules. It allows mechanics and technicians to read and write data from specific Mercedes-Benz gearboxes like VGS-FDCT 724, VGS2- 722.8, VGS-7Gtronic-722.9, VGS-9GT-725 and ISM modules. The set is designed to work with various diagnostic platforms such as CGDI MB, Xhorse tools (Key Tool Plus, Multi-Prog and VVDI MB Tool, etc), and other devices like Autel and Launch tablets and those using software like PCMflash, Foxflash, dfbfoxflash, FGTagFlash, etc.

Key features

Mercedes-Benz compatibility: Specifically designed for a range of Mercedes-Benz VGS and ISM gearbox modules.
Multi-device support: Works with a variety of diagnostic tools, including Xhorse products, Autel, and devices that use software like PCMflash.
Functionality: Enables tasks such as reading and writing data, cloning, and general diagnostics on the connected gearbox modules.
Direct connection: Provides direct connections to devices like the Autel G-BOX and Xhorse Multi-Prog.
Additional connectors: May include an OBD2 port and other connectors to support a wider range of connections and DIY (do-it-yourself) bench setups.

GODIAG Gearbox ISM Cable 5-in-1 Set Package List:

GODIAG Gearbox ISM Cable can be connected to GT107+.

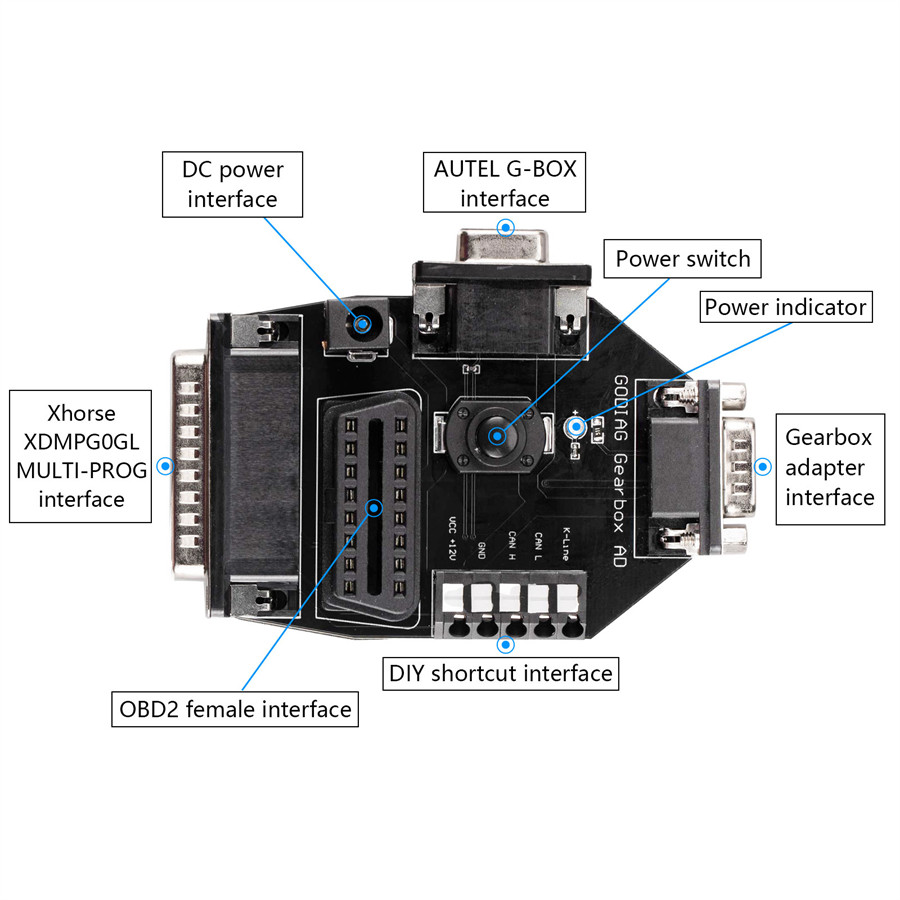

The accessory includes an adapter for direct connection to the AUTEL G-BOX or XHORSE XDMPG0GL MULTI-PROG. It also includes an OBD2 port and a DIY plug port, supporting DIY benches.
