Question:
How is a right way to make Tesla 1512876-00-E SRS unit with CGDI CG100X?
CGDISHOP.com engineer replied:
There is detailed operation instruction in CG100X software.

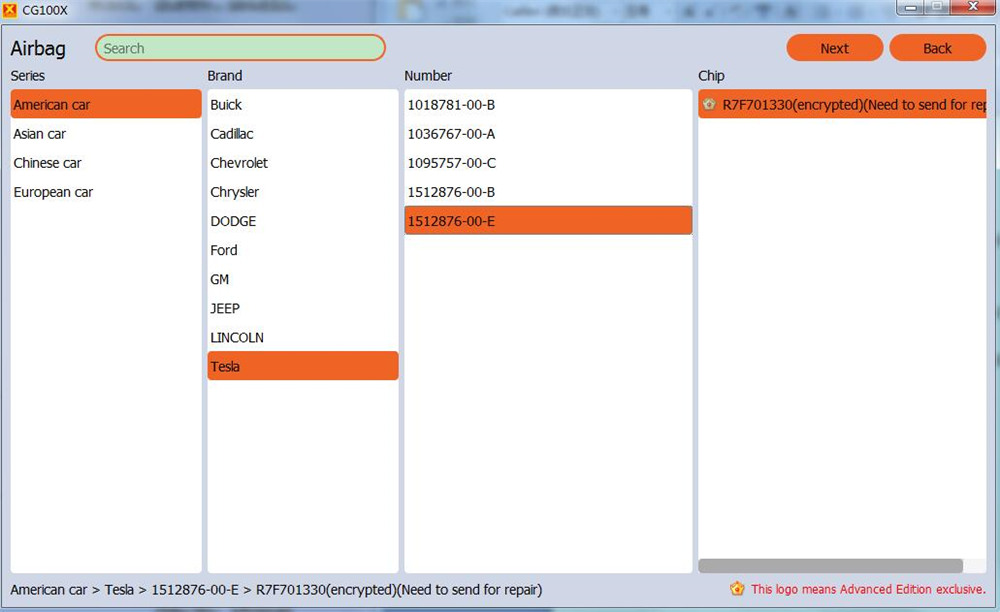

Navigation path:
Airbag> American car > Tesla > 1512876-00-E > R7F701330 (encrypted) U3000:50
Chip: R7F701330_boot
Check the precautions below:
- Pro Adaptation line
- D1-Adapter
- R7F701330_WD Type4 No-Desolder Cap

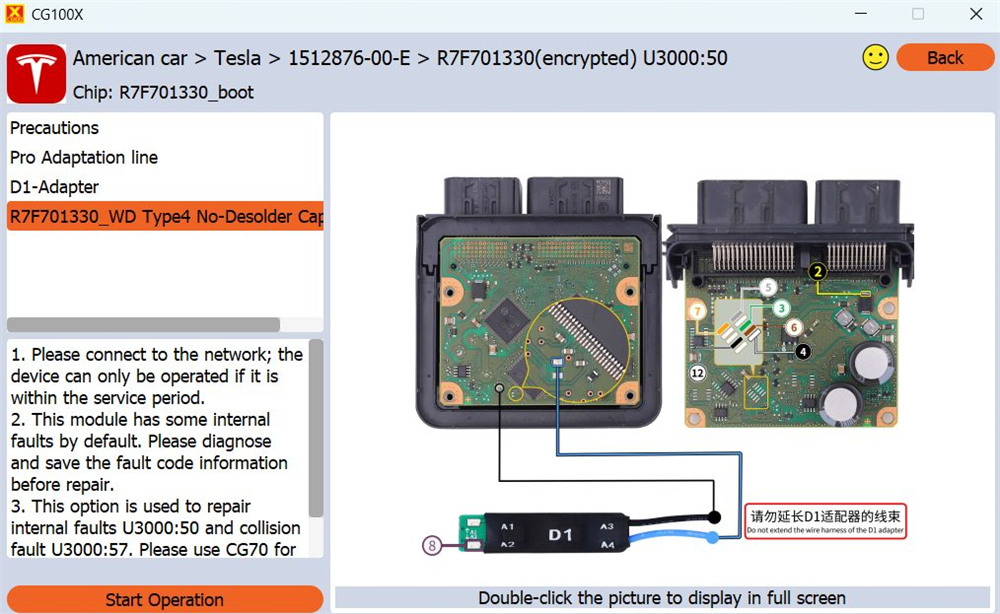

Click “R7F701330_WD Type4 No-Desolder Cap”
You can see the related connection diagram and the detailed instruction.
1.Please connect to the network; the device can only be operated if it is within the service period.
2.This module has some internal faults by default. Please diagnose and save the fault code information before repair.
3.This option is used to repair internal faults U3000:50 and collision fault U3000:57…
Note: Do not extend the wire harness of CG100X D1 Adapter.
Click “Start Operation”
Then follow the on-screen prompts to complete the repair process.
