CGDI CG70 Reset Airbag on 2014 Subaru Forester One Key

CGDI CG70 Airbag Reset Tool can read errors and clear fault code one key with the “Auto repair” function on the 2014 Subaru Forester, works like a charm!

The operation procedure:

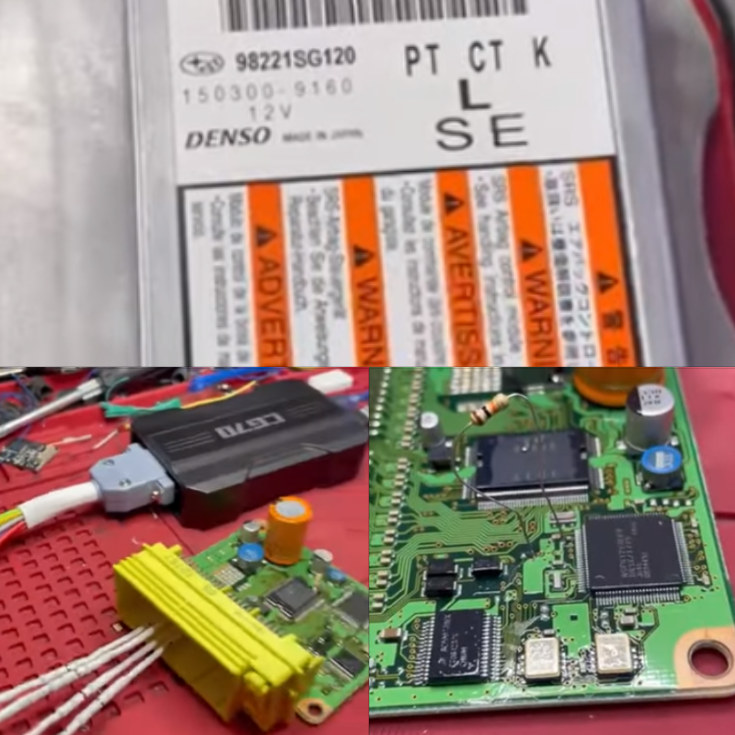

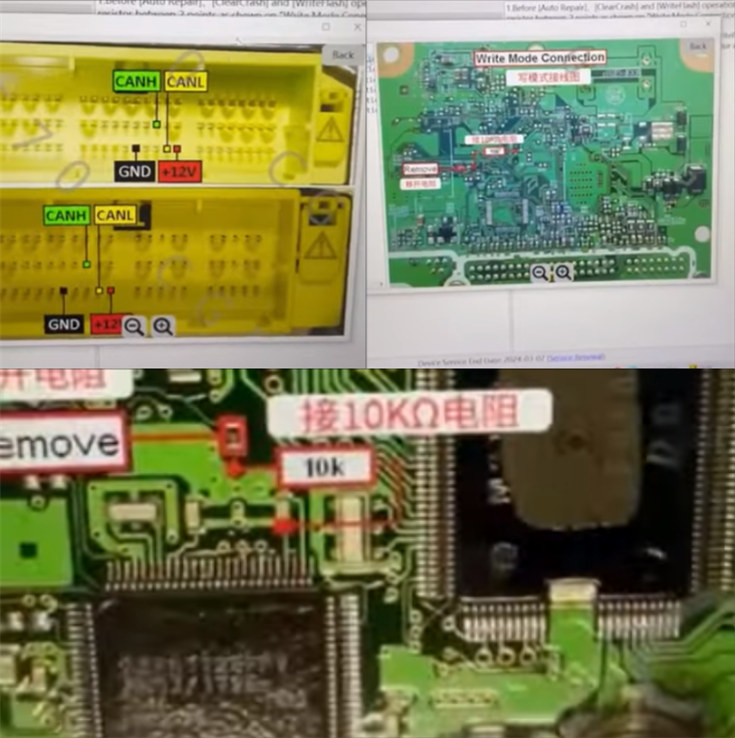

Connect CGDI CG70, and Subaru Forester airbag ecu according to the wiring diagram in CG70 software.

Also, need to connect a 10k ohm resistor.

And connect CG70 to the computer via the USB cable.

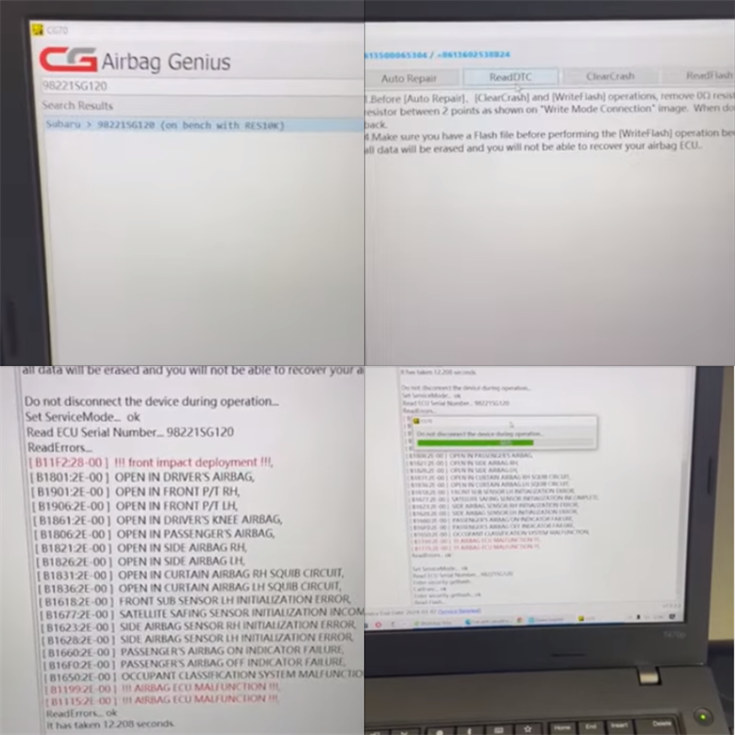

Run CG70 software, enter the airbag ECU number to search the ECU

It’s Subaru 98221SG120.

Pay attention to the operation notes.

Do not disconnect the device during the operation.

Click “Read DTC”, and wait a moment, it reads errors OK.

Then click “Auto Repair” to reset the airbag

It takes a little long time to repair, please keep patient and wait until the process is completed.
