One customer used CG FC200 ECU Programmer to test his Hyundai HB20 MEG17.9.12. It successfully read and backup DFLASH & PFLASH data, and also can modify VIN on bench.

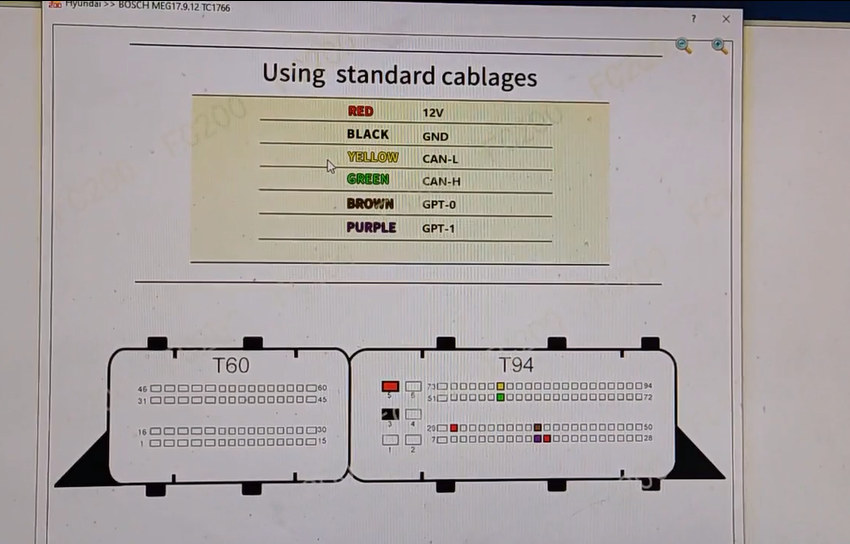

CG FC200 Hyundai HB20 MEG17.9.12 wiring diagram:
Red=12 V
Black= GND
Yellow= CAN-L
Green= CAN-H
Brown= GPT-0
Purple= GPT-1

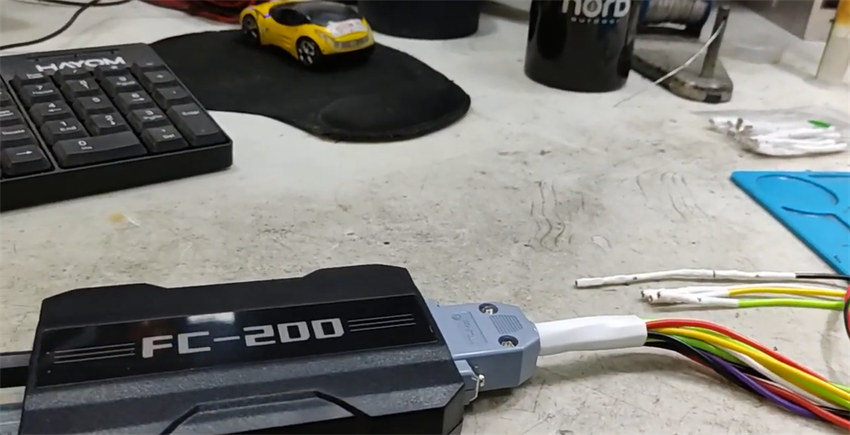

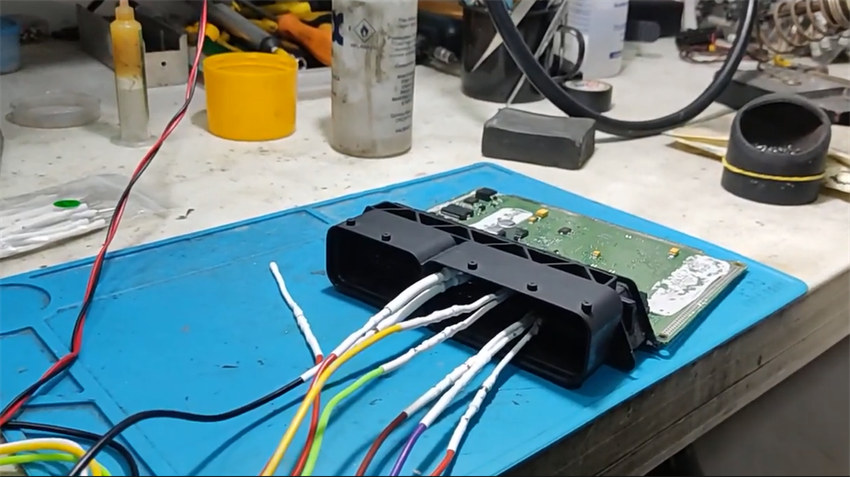

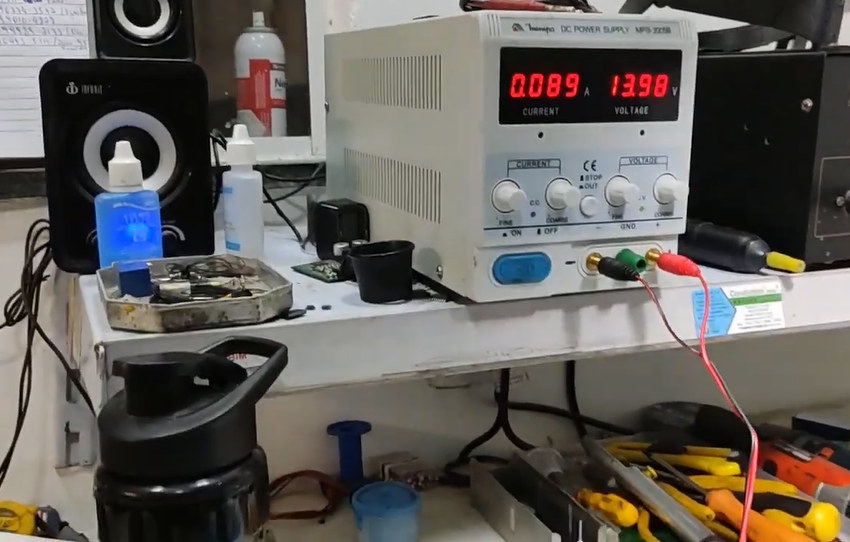

Connect FC200 to MEG 17.9.12 ECU via the professional Jumper, and connect to PC via the USB cable, also connect a 12V DC power supply
Run FC200 software

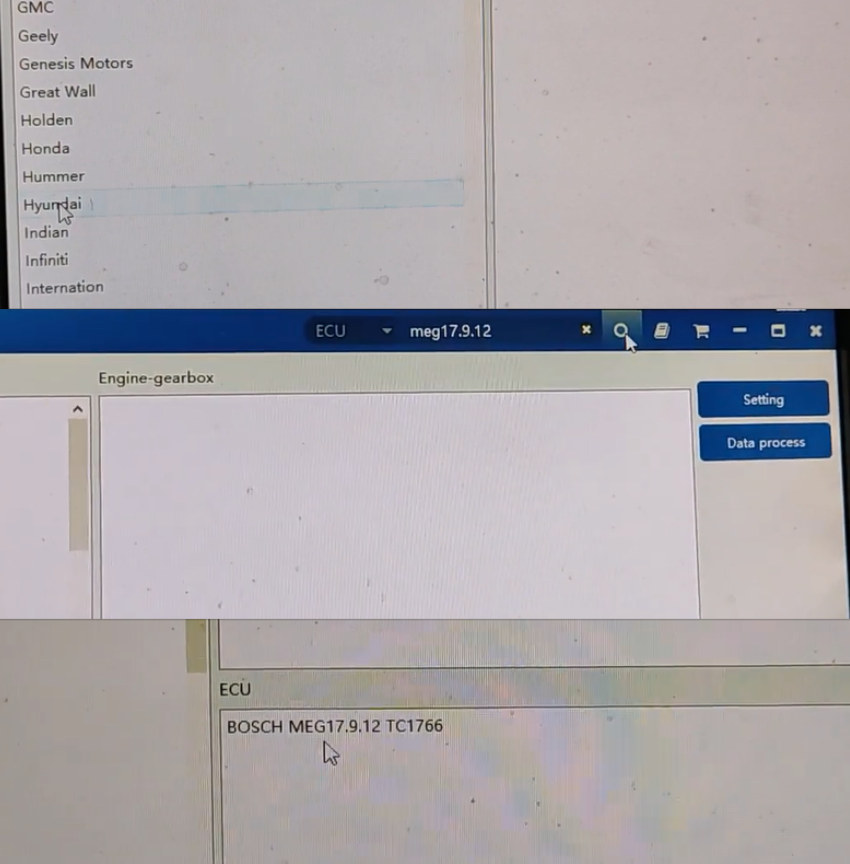

Select Hyundai, and input meg17.9.12 in the search box to quickly find out the ECU- BOSCH MEG17.9.12 TC1766

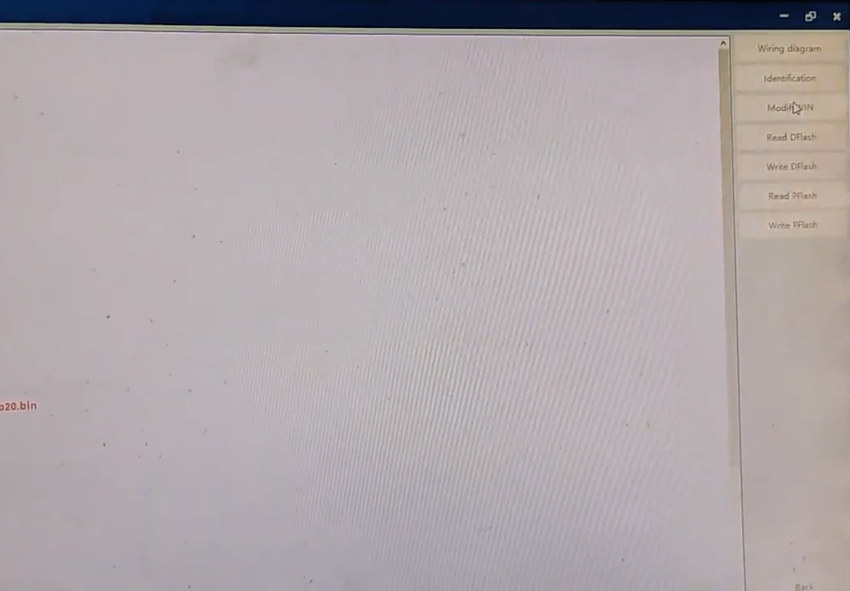

Click “Platform” to enter the operation page

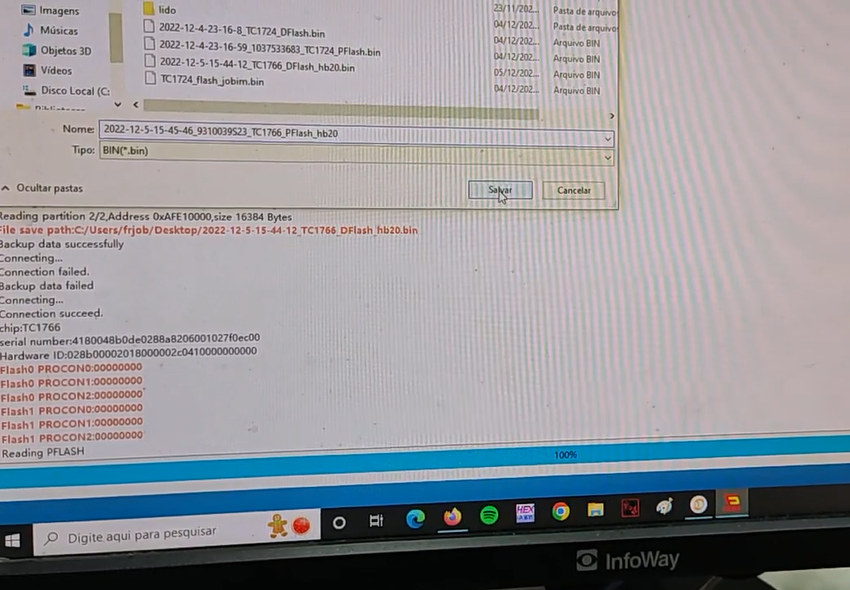

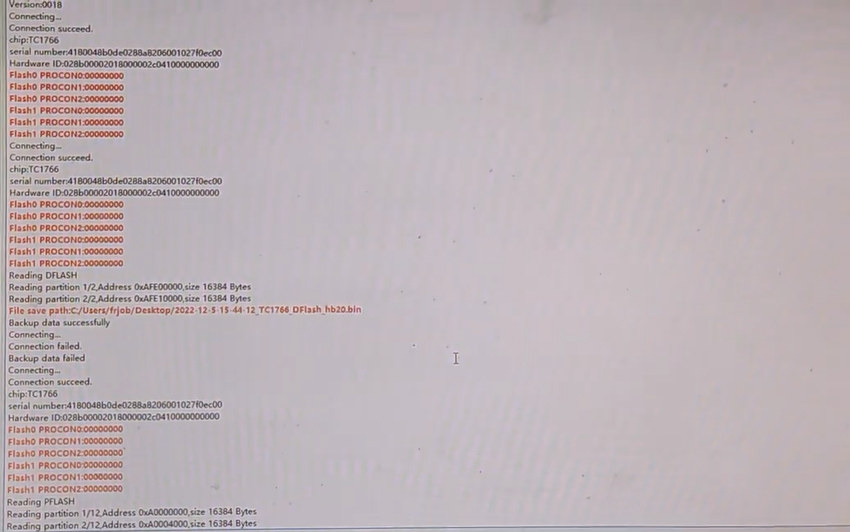

Identify the ECU chip, SN, and hardware ID successfully

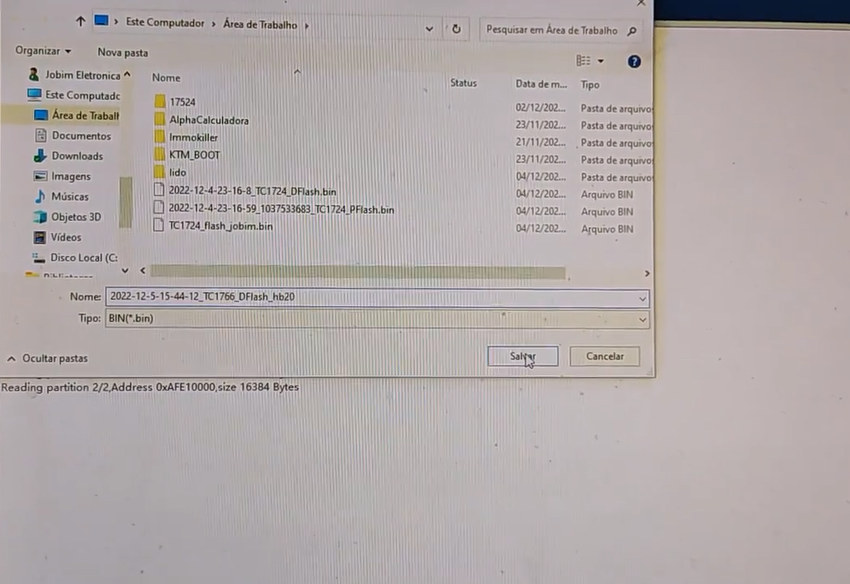

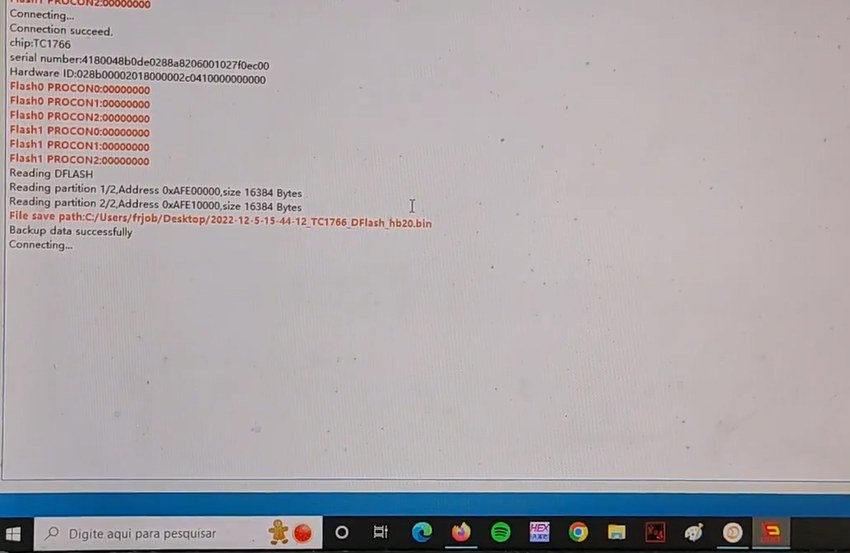

Read DFLASH and PFLASH data in sequence, and save the original data after reading

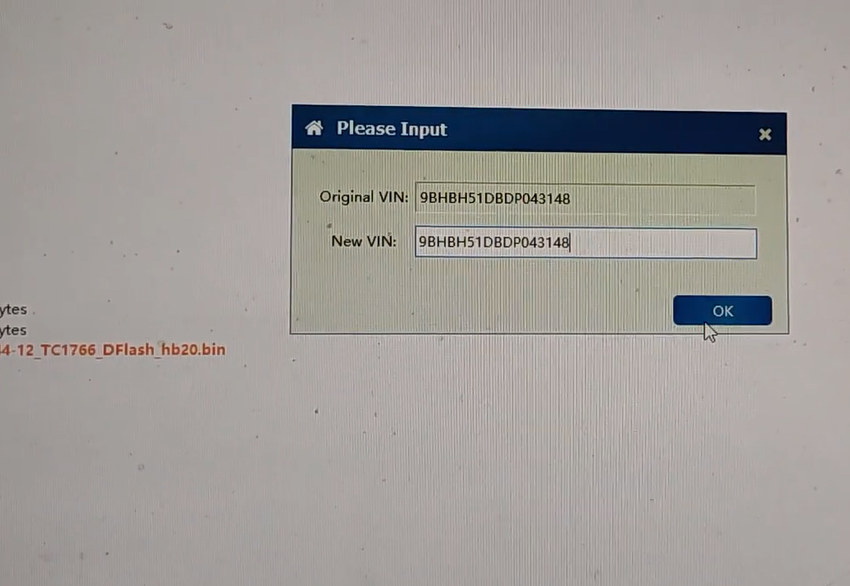

CG FC-200 can modify VIN for meg17.9.12 as well.
