Here cgdishop.com show you step-by-step guide on how to use CG100 Prog III to repair Land Rover airbag module.
Preparations:
BDM+4 Adapter(Included in CG100 package)
Land Rover airbag control module
Screwdriver and 12-pins wedling line
Procedures:
Remove Airbag control module PCB,the follow CG100 diagram to build connection
Select “Airbag”,the input airbag number”BJ32″ to search
Select “Land Rover 2010-2014 Wiring Diagram”,now you can get the wire diagram
Follow the wire diagram to solder wire on PCB
Plug 12-pins welding lines to BDM+4 adapter and connect it to CG100 main unit
Back to CG100 III Programmer software to click “Start” button to continue

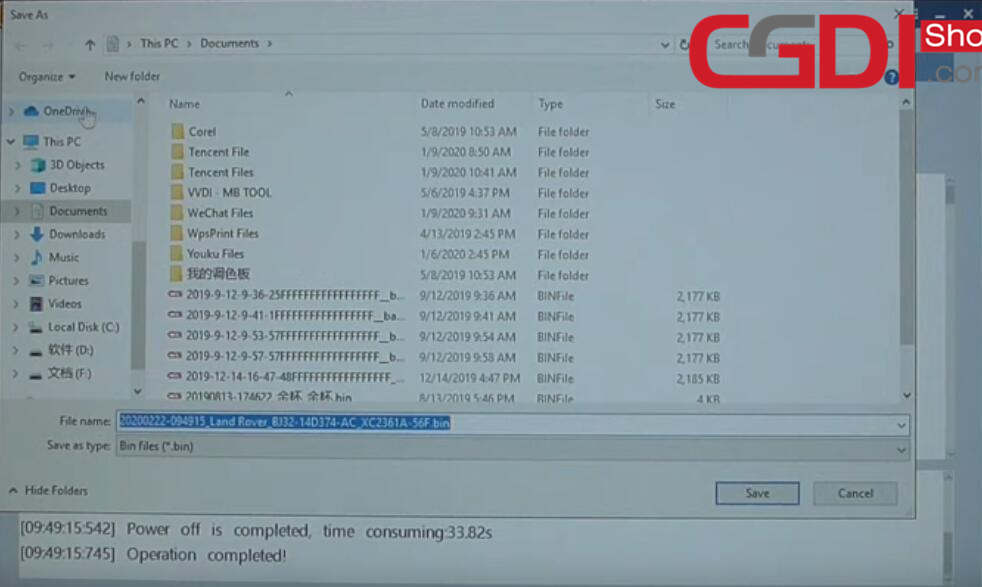

Reading data,please don’t disconnect,and then please save the data on your pc.
After then it will ask “Whether to repar”,click “Yes”
The airbag is being repaired,please do not disconnect…
Repairing successed,click “OK”
Disconnect wires,and intall airbag module
Done!
