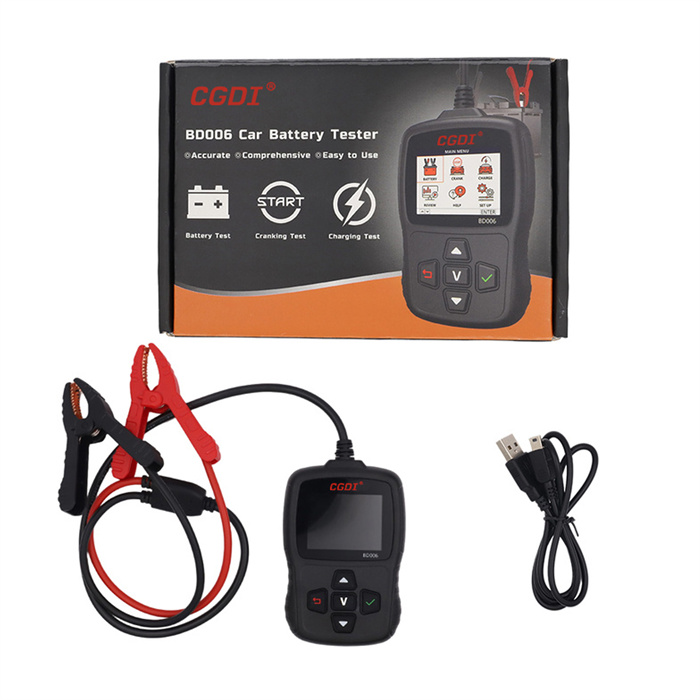

CGDI BD006 Car Battery Tester is a professional battery testing tool that uses advanced conductance technology to quickly test battery CCA and State of Health (SoH). It helps technicians check battery performance, starting, and charging system conditions with accurate results, making vehicle diagnosis faster and easier.
Key Features of CGDI BD006:
Fast and Accurate Testing
The tester provides reliable battery analysis with an easy-to-read display, making the testing process simple and efficient.
Multiple Diagnostic Functions
CGDI BD006 Battery Tester supports four major functions:
- Battery Test
- Cranking Test
- Charging Test
- Data Review
Technicians can check battery performance as well as the vehicle’s starting and charging systems.
Wide Battery Compatibility
It supports testing various automotive lead-acid batteries, including:
- Standard Lead-Acid Batteries
- EFB Batteries
- AGM Flat Plate Batteries
- AGM Spiral Batteries
- Gel Batteries
Multiple Battery Standards Supported
The tester is compatible with worldwide battery rating standards, including:
CCA, JIS, GB, SAE, MCA, CA, DIN, IEC, EN, and BCI.
Safe Operation Design
With reverse polarity protection, CGDI BD006 helps prevent damage caused by incorrect connections and protects both the tester and vehicle battery.
Multi-Language Support
The device supports multiple languages, including English, Spanish, German, French, Italian, Portuguese, and Japanese. Additional languages can also be customized according to user requirements.
CGDI BD006 VS Other Car Battery Testers:
| Feature | CGDI BD006 | Others |
| Voltage Support | ✔ 12V & 24V | 12V Only |
| Battery Capacity | ✔ 10Ah–220Ah | 30Ah+ |
| Data Storage | ✔ Stores Test History | Not Supported |
| Testing Speed | ✔ 3-Second Results | Standard |
| Accuracy | ✔ 0.01V Precision | Standard |
| Display | ✔ Color LCD Screen | LED Indicators |
| User Experience | ✔ Professional & Intuitive | Basic |
| Target Users | ✔ DIY & Professionals | DIY Users |
| Standards Supported | ✔ CCA, JIS, GB, SAE, MCA, CA, DIN, IEC, EN, BCI | Limited |

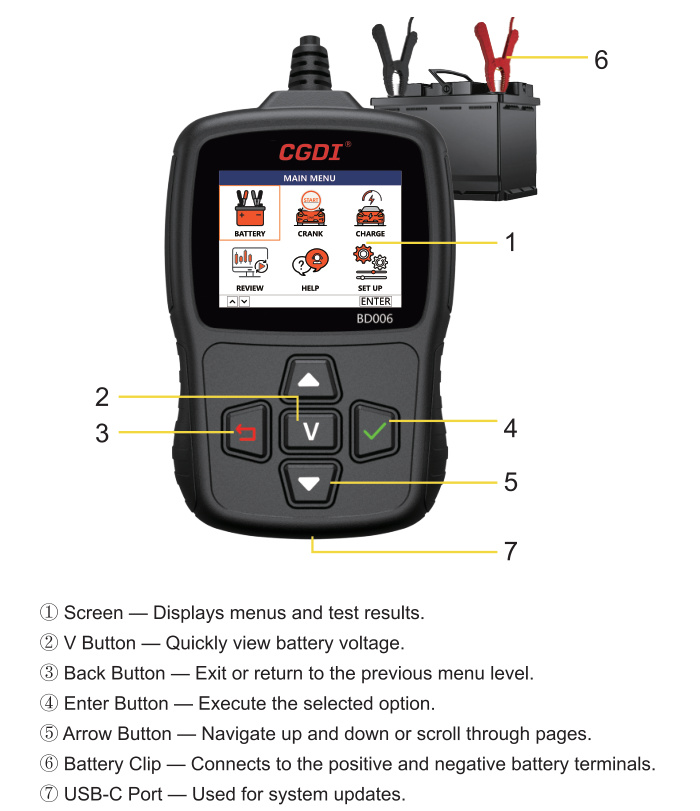

CGDI BD006 Hardware Display

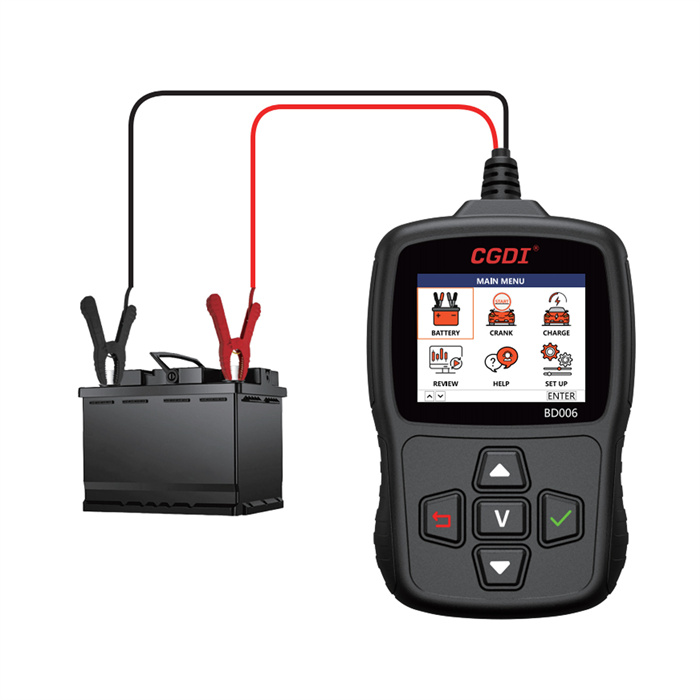

How to connect CGDI BD006 and battery?
1.Connect the red clip to the positive (+) battery terminal and the black clip to the negative (-) battery terminal. The unit will then automatically power on and be ready for testing.
2.If testing the battery in a vehicle, do not insert the key, and ensure it remains in the OFF position. Make sure all electrical equipment and doors are closed.
- If the battery voltage is below 7V, the tester may not function properly.
- Before testing, clean the battery positive (+) and negative (-) terminals. If there is corrosion on the terminals, remove it before proceeding with the test.
- Connect the alligator clips directly to the battery positive (+) and negative (-) terminals. Do not use extension or adapter cables for an indirect connection.
- If the alligator clips are not properly fastened, the tester will display a warning message.
With accurate testing, wide compatibility, and simple operation, BD006 Car Battery Tester is a practical solution for battery inspection and automotive maintenance.
