The CGSULIT SC530 Pro is a professional OBD2 diagnostic scanner designed for in-depth vehicle diagnostics. It provides comprehensive system diagnostics, including reading ECU info, reading/clearing trouble codes, real-time data, freeze frame, and special functions for Benz brand.
Key Features of CGSULIT SC530 Pro for Benz:
- Full System Diagnosis – Covers engine, ABS, SRS, transmission, active testing, and more
- OBDII Functions – Read ECU info., read/clear DTC, real-time data, freeze frame, etc.
- Special Functions –include maintenance light reset, steering angle matching, throttle matching, seat matching, transmission matching, door and window matching, airbag reset, air conditioning learning, gear learning (not all models support all special functions).
- Language: English and Chinese
- User-Friendly Interface
Features a 240×320 TFT color display with an intuitive menu system, supports switching between metric and imperial units, which can be switched directly in the device settings, and the test history can be viewed in the device.
- Portable & Durable Design
Compact and lightweight, the SC530 Pro comes with a nylon carry pouch, making it easy to transport and store. Its rugged design ensures durability, even in the toughest working conditions.
- Easy Updates & Long-Term Support
Stay up-to-date with the latest software updates, bug fixes, and expanded vehicle coverage. The SC530 Pro is backed by a one-year limited warranty and dedicated customer support to assist you with any issues.

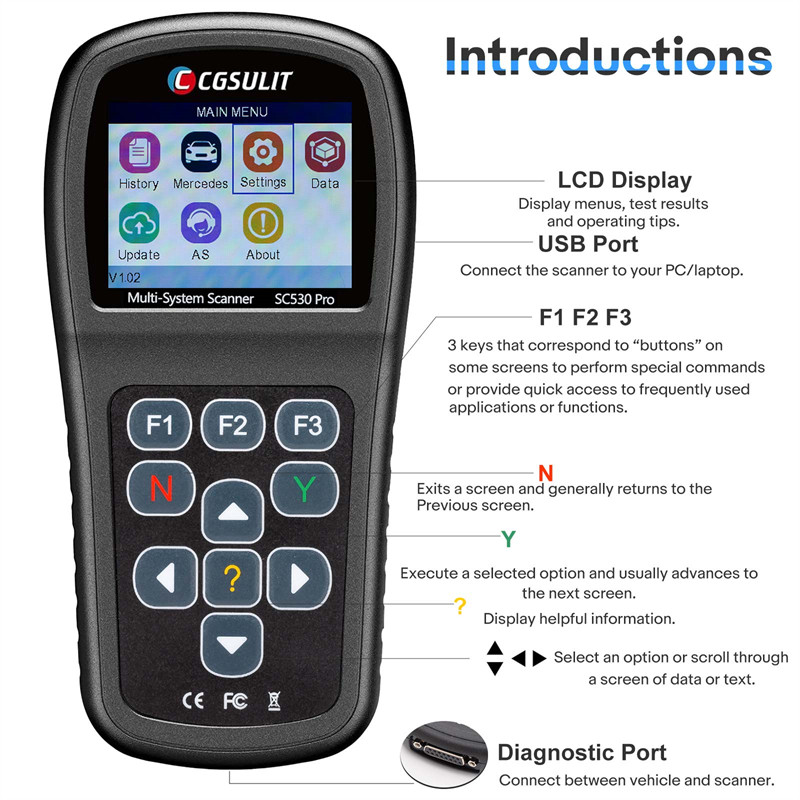

CGSULIT SC530 Pro Hardware Introduction:
- LCD Display
Display menus, test results, and operating tips. - USB Port
Connect the scanner to your PC/laptop. - F1 F2 F3
3 keys that correspond to “buttons” on some screens to perform special commands or provide quick access to frequently used applications or functions. - N
Exits a screen and generally returns to the previous screen. - Y
Execute a selected option and usually advances to the next screen. - ?
Display helpful information. - ▲▼
Select an option or scroll through a screen of data or text. - Diagnostic Port
Connect between vehicle and scanner.
CGSULIT SC530 Pro Application Overview:
| Application | Description |
| History | Displays stored vehicle test records. This option allows direct access to previously diagnosed test vehicles |
| Mercedes | Leads to screens for all available electronic module information of your vehicle.
Including diagnostic trouble code, live data, active test, special functions |
| Settings | Leads to screens for customizing the default settings and viewing information about the scanner |
| Data | Leads to screens for accessing data records |
| Update | Leads to screens for updating the scanner |
| AS | After-sales contact information |
| About | Software, Hardware, Copyright information display |
CGSULIT SC530 Pro Package List:
1pc x Main Unit
1pc x USB Cable
1pc x Diagnostic Cable
1pc x User Manual
1pc x Nylon Carry Pouch
