CGDI MB AC adapter collect Benz W164 EIS Data (No need to plug)

CGDI MB Key Programmer with AC adapter can collect data for Mercedes W164 W204 W221 W209 W246 W251 W166. It’s very fast to acquire data via OBD, no need to plug.

Here share CGDI MB with AC adapter collects Benz W164 data within 3 minutes



All devices need:

CGDI prog MB

AC adapter

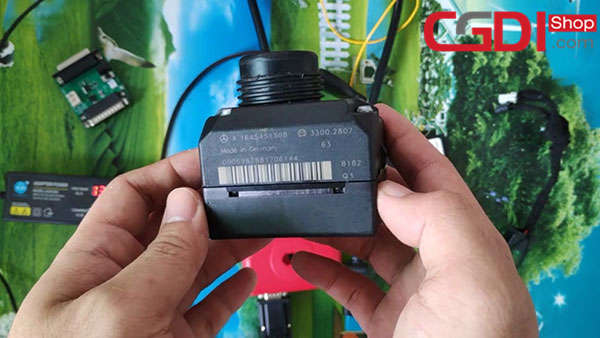

Mercedes Benz W164 EIS

Benz Gateway

New key

cgdi-prog-mb-ac-adapter-collect-benz-w164-data-1 cgdi-prog-mb-ac-adapter-collect-benz-w164-data-2



Main steps:

Step 1: Connect all devices

Step 2: Calculate password

Step 3: Generate key

Step 4: Program new key

Step 5: Test new key



Procedures:

Step 1: Connect all devices

Connect Benz gateway to W164 EIS by professional cable

Connect AC adapter to CGDI pro MB

Power on and keep the voltage at about 12-14V

Connect cable OBD to CGDI MB OBD

Connect CGDI pro MB to PC

cgdi-prog-mb-ac-adapter-collect-benz-w164-data-3



Step 2: Calculate password

Go to CGDI MB software

Select “EIS”–>”Read EIS Data” to display key info

cgdi-prog-mb-ac-adapter-collect-benz-w164-data-4

Select “Compute Password”–>”Copy key without key” –> Collect Data

Choose “Platform mode (Quick collect)” and then click “OK”

cgdi-prog-mb-ac-adapter-collect-benz-w164-data-5

Follow the prompt to insert the simulation key within 1 minute, and turn the quick collect adapter (AC adapter) switch to the platform position. Turn the key to the ignition switch to ON position.

cgdi-prog-mb-ac-adapter-collect-benz-w164-data-6 cgdi-prog-mb-ac-adapter-collect-benz-w164-data-7

It needs 3 minutes to collect data, please be patient to wait.

Collect data success, and then save it

cgdi-prog-mb-ac-adapter-collect-benz-w164-data-8

Save the file successfully

Click “OK” to next step

cgdi-prog-mb-ac-adapter-collect-benz-w164-data-9

Click “Query Result” to calculate password

This procedure needs about 2 minutes

Copy the password calculated to desktop

cgdi-prog-mb-ac-adapter-collect-benz-w164-data-10

Click “EIS”

Paste the password automatically by newest CGMB version

Click “Save EIS Data”

Save the file successfully

cgdi-prog-mb-ac-adapter-collect-benz-w164-data-11



Step 3: Generate key

Select “Generate EE”-> “Load EIS file” to check EIS data information

Remove the tick marks before key 1 and key 2

Click “Generate key file”

cgdi-prog-mb-ac-adapter-collect-benz-w164-data-12

Save the key file

cgdi-prog-mb-ac-adapter-collect-benz-w164-data-13

This key file is generated successfully

cgdi-prog-mb-ac-adapter-collect-benz-w164-data-14



Step 4: Program new key

Insert the new key into the CGDI MB key programmer

cgdi-prog-mb-ac-adapter-collect-benz-w164-data-15

Select “Read/ Write Key”-> “Infrared”-> “Read Key/ Chip”

Click “Reset” to erase the used key data

Reset operation succeed

cgdi-prog-mb-ac-adapter-collect-benz-w164-data-16

Click “Open/Write” button, the key basic data become zero

Note: Smart key please choose 41 format, common key and BE key please choose 51 format! When writing the original key, please make sure that it is wiped by the CGMB, otherwise the write will fail!

cgdi-prog-mb-ac-adapter-collect-benz-w164-data-17

Select an unused key file (3_51) to write data

cgdi-prog-mb-ac-adapter-collect-benz-w164-data-18

Write success

cgdi-prog-mb-ac-adapter-collect-benz-w164-data-19



Step 5: Test new key

Insert the new key into Benz W164 EIS to learn

cgdi-prog-mb-ac-adapter-collect-benz-w164-data-20

And then insert the new key into CGDI prog MB again

Select “EIS”–>”Read EIS Data” to display current key info

cgdi-prog-mb-ac-adapter-collect-benz-w164-data-21

Click “Read Key/Chip” again to check the position key 3 is used

cgdi-prog-mb-ac-adapter-collect-benz-w164-data-22

CGDI MB with AC adapter programs key successfully!

Done!
