CGDI A2 Programmer added VW MQB 5C/5D key matching function in the latest software V038 on April 17, 2026.
Let’s walk through the steps to complete a successful key learning procedure.
What’s new in CGDI A2 V038?
1.[Update] VW
Added MQB 5C/5D key matching function.
2.[Update] JAC
Added password read function for Delphi and Dias immobilizer systems.
3.[Update] Toyota / Lexus
Optimized key matching function for 4A–7A smart keys.
How to Learn VW 5C/5D Key by CGDI A2?
Connect CGDI A2 tablet to the vehicle via OBD cable
Go to [IMMO] function

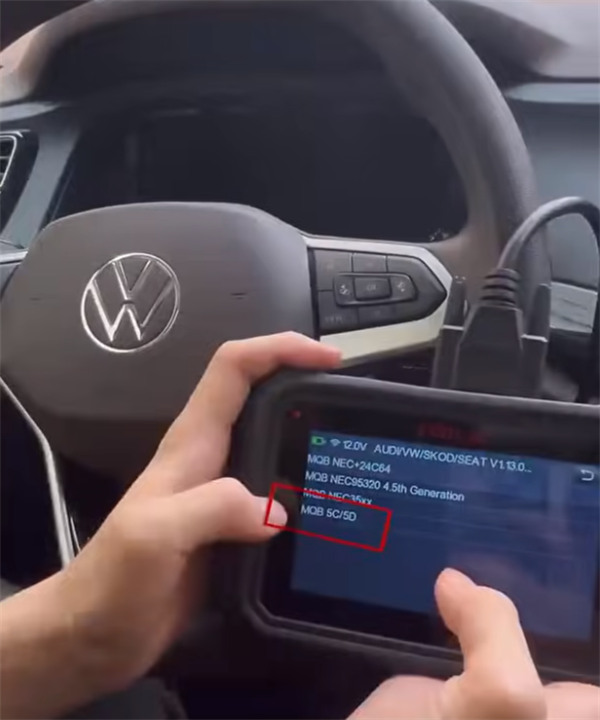

Select AUDI/VW/SKODA/SEAT-> MQB 5C/5D
Perform [Learn Key] function

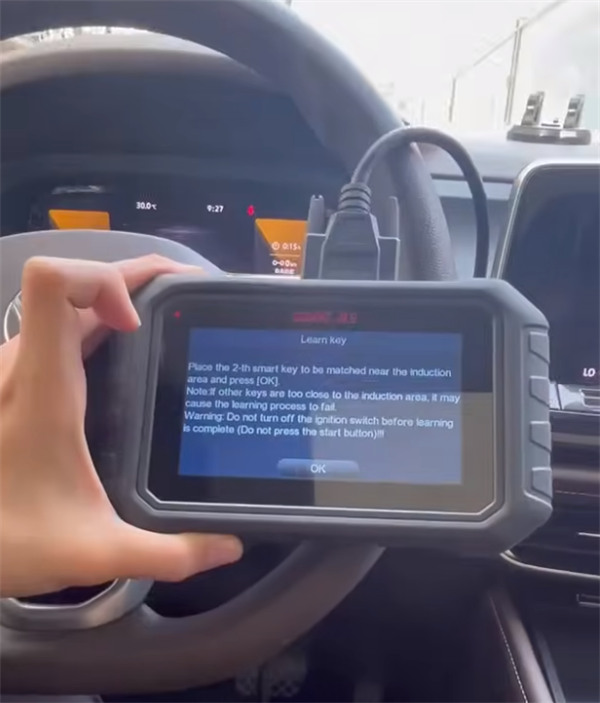

Follow the on-screen operation instruction to operate

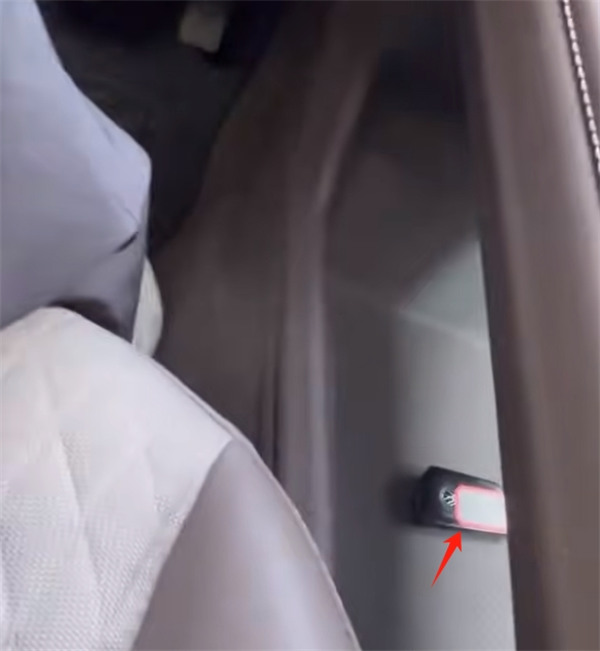

- Place the 2th smart key to be matched near the induction area and press “OK”
- Note: If other keys are too close to the induction area, it may cause the learning process to fail.
- Warning: Do not turn off the ignition switch before learning is complete (Do not press the start button)!!!

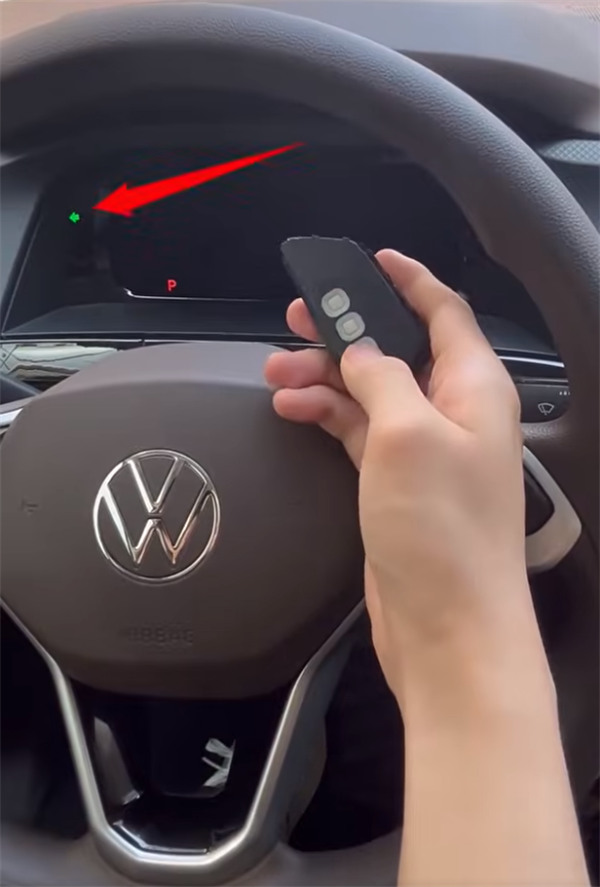

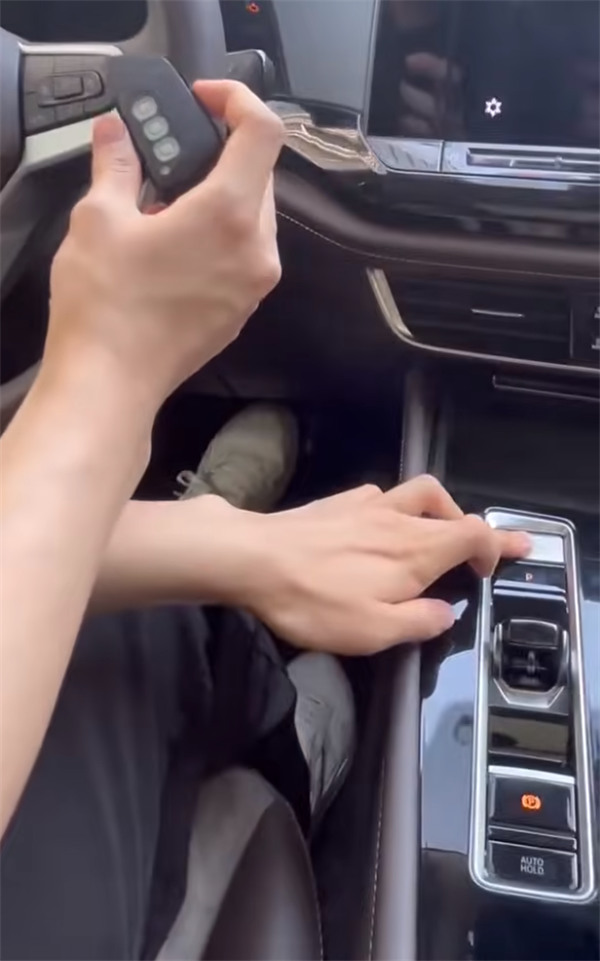

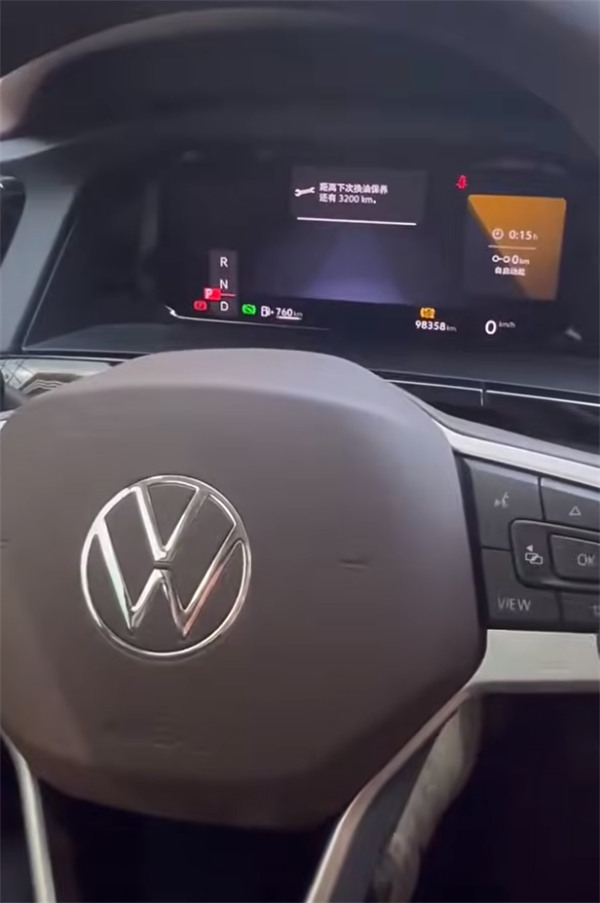

VW MQB 5C/5D key learning is complete using CGDI A2 key programmer on the vehicle!
