CG FC200 ECU programmer supports complete decryption, reading, and writing for encrypted Bosch MG1CS201 (B48) and MG1CS024 (B58) ECUs on bench, no need to remove board components or open module casings. Now it also can read MD1CS001 TC298 ECU ISN successfully.
CG FC200 Update: BMW B48 B58 ECU No-Open Decrypt & Read Write
Requirement:
- CG FC200 with latest software
- New DB15 Harness
Procedure:

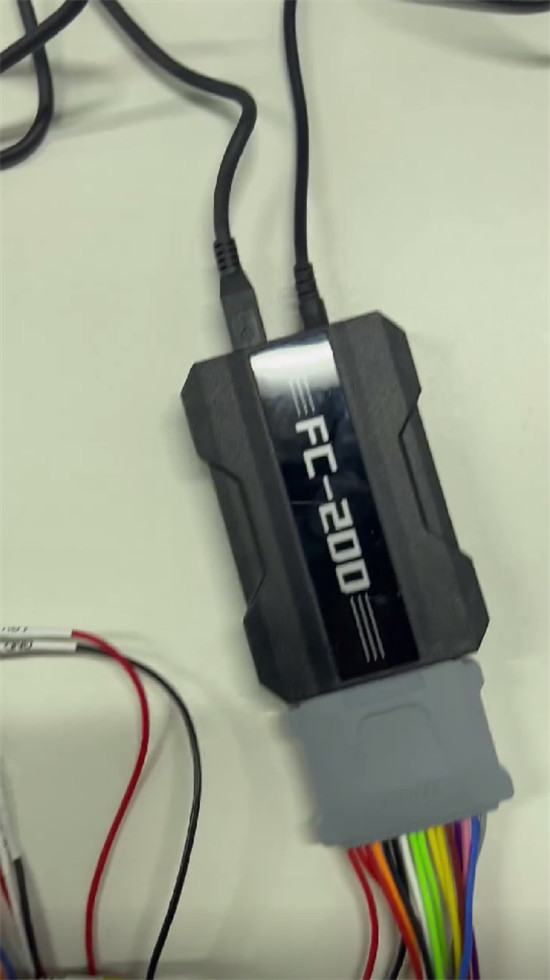

1.Connect FC200 programmer to PC via USB cable
2.Update FC200 software to the latest version

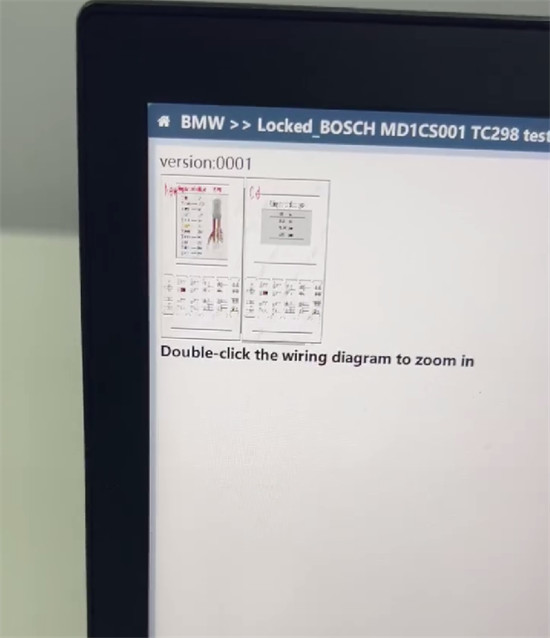

3.Navigate to BMW-> Locked BOSCH MD1CS001 TC298

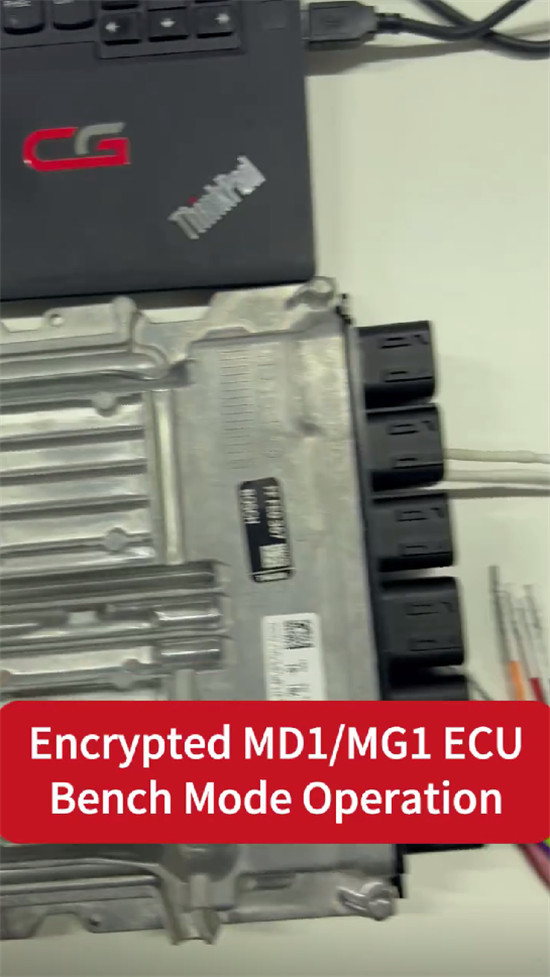

4.Follow the wiring diagram inside to connect device and MD1CS001 ECU via FC200 New DB15 Harness

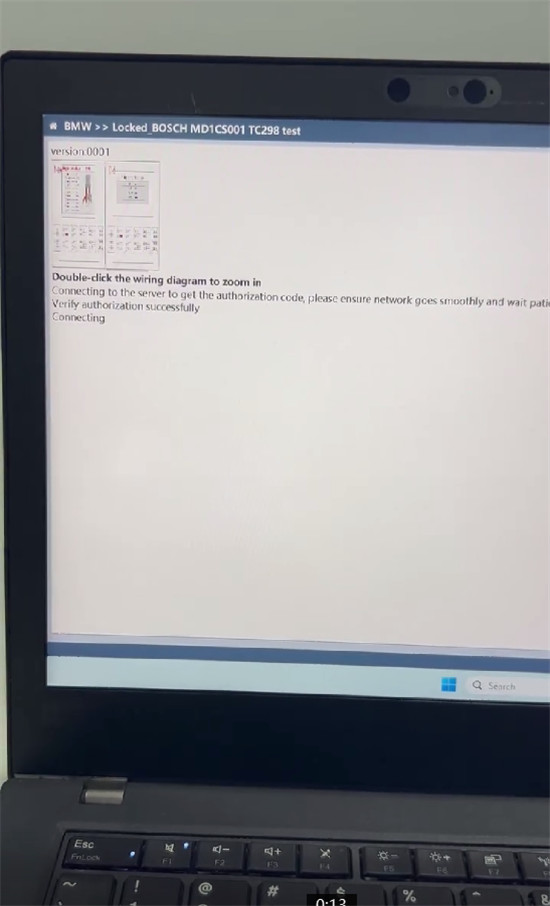

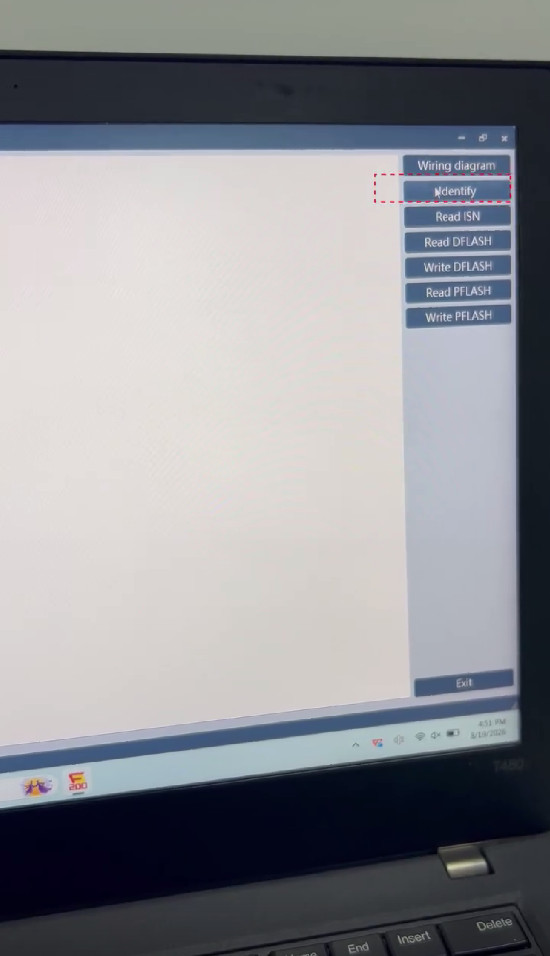

5.Click [Identify] to verify the authorization and ECU connection

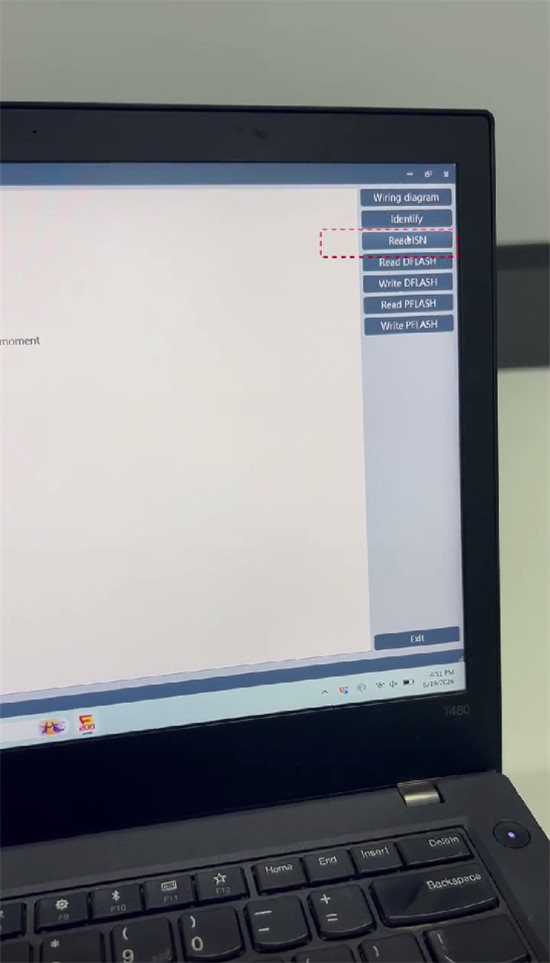

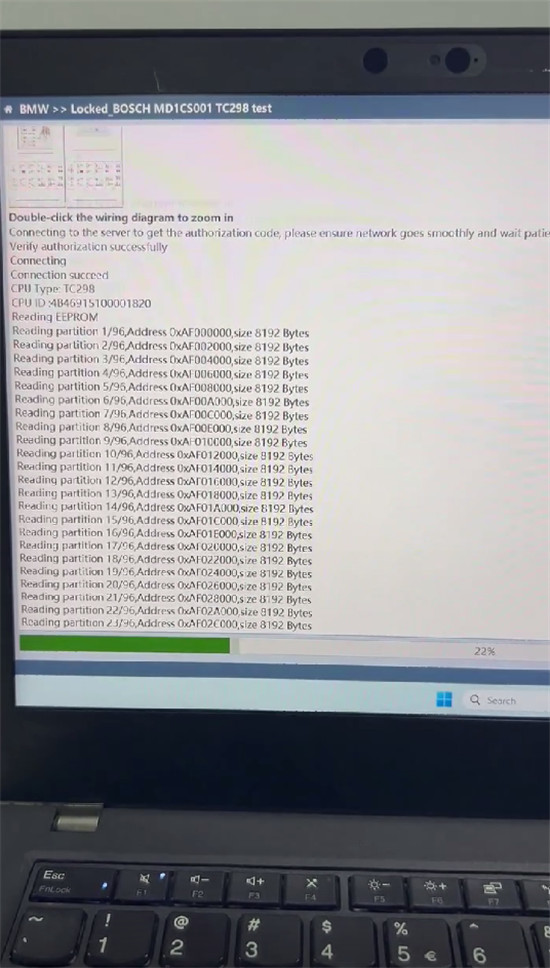

6.Click [Read ISN] to complete the process

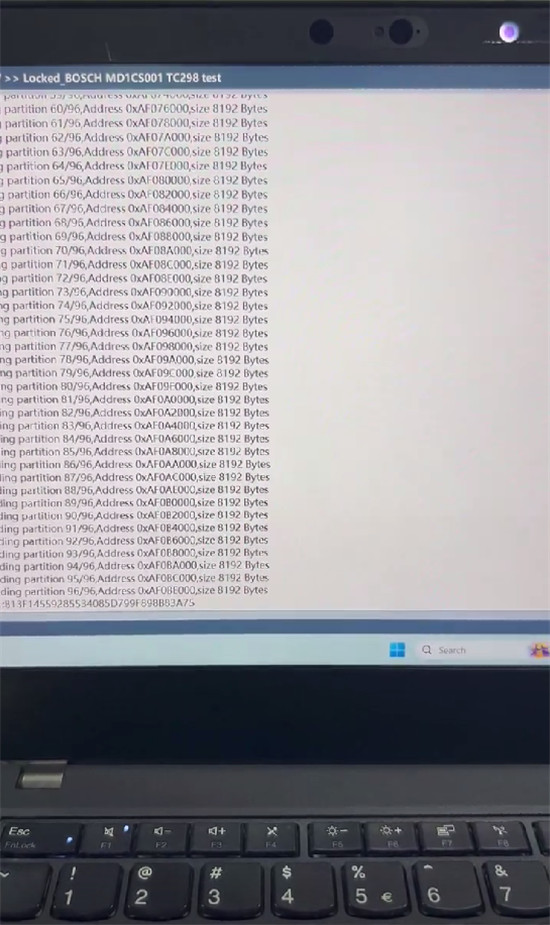

All are successful.
