CGDI CG70 Auto Repair KIA 95910-1W500 Airbag Success

CGDI CG70 Airbag Reset Tool feedback: auto repair KIA 95910-1W500 airbag ECU successfully!

Open CG70 software

Input 95910-1W500 in the search box to quickly find r KIA 95910-1W500

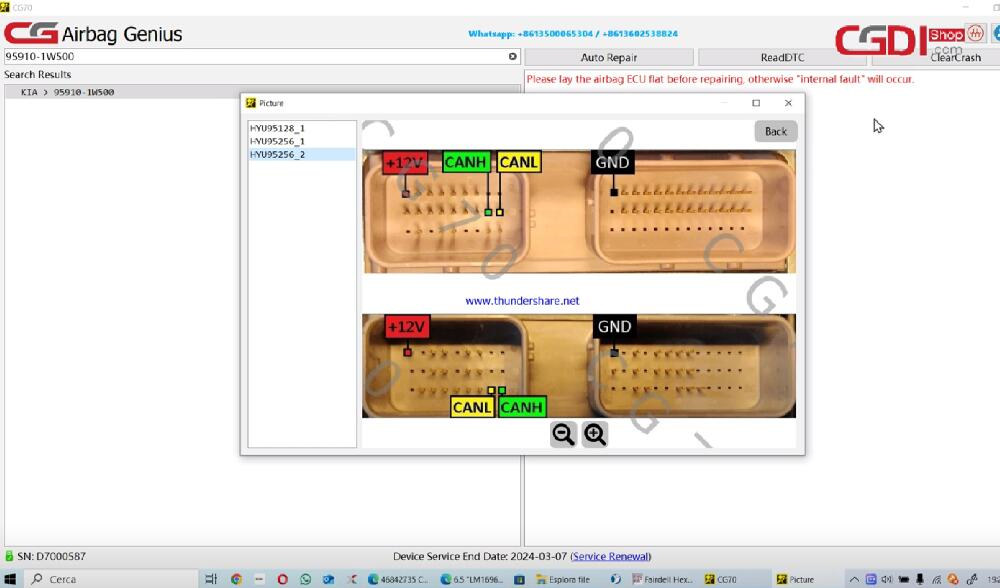

Check wiring diagram

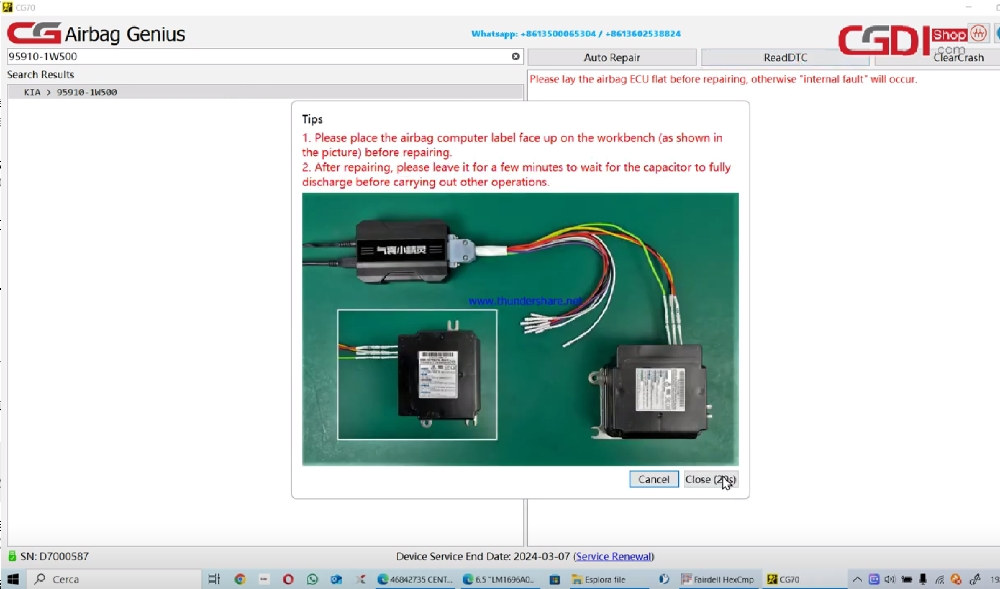

Follow the diagram to connect CGDI CG70 and KIA airbag ECU via the harness correctly

Need to connect GND, +12V, CANH and CANL four cables

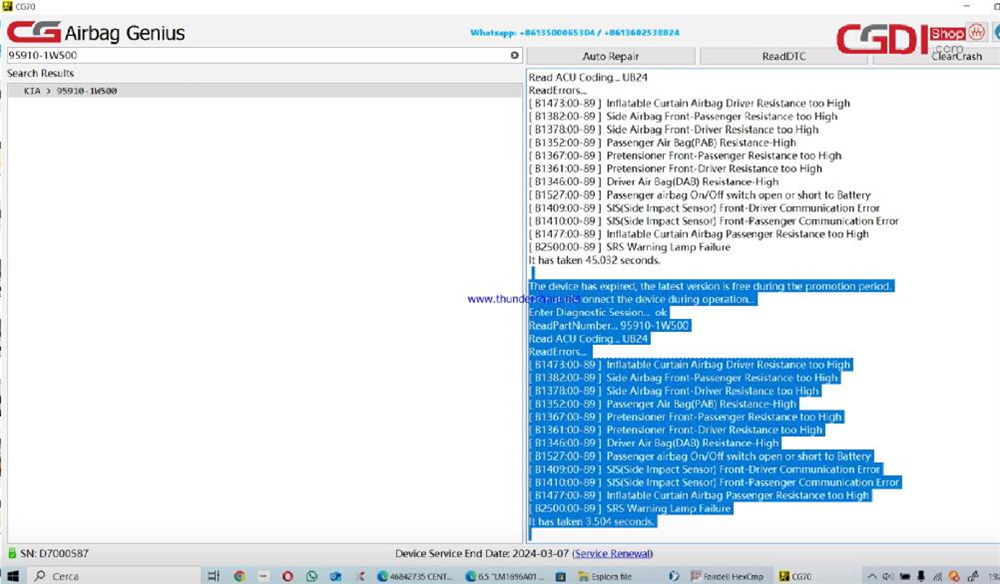

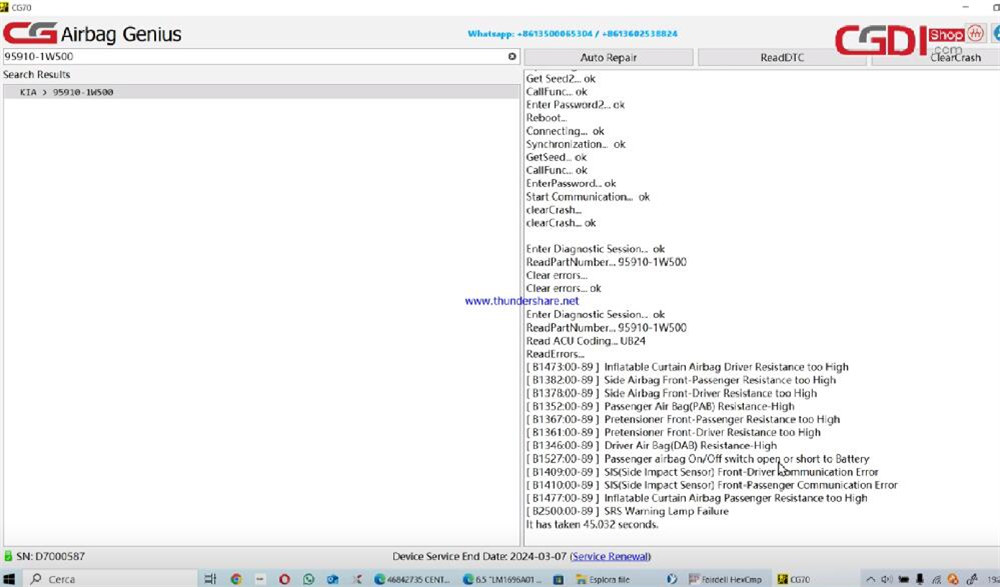

Start to read DTC and then clear the crash data one key by clicking “Auto Repair”

Read the error is “[B1650:00-89] !!!SRSCM Crash Recorded!!!”

Clear crash…OK

Clear errors…OK

Finally, the KIA 95910-1W500 airbag has been repaired by CG70 Airbag Reset Tool perfectly.

Video guide:

Author: admin
